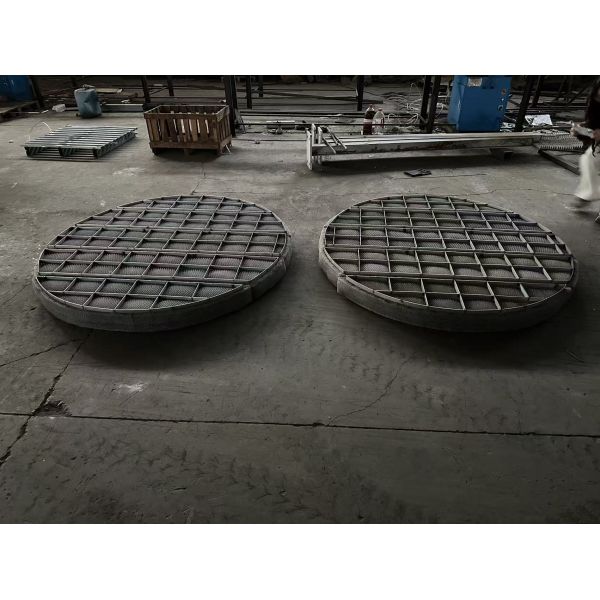

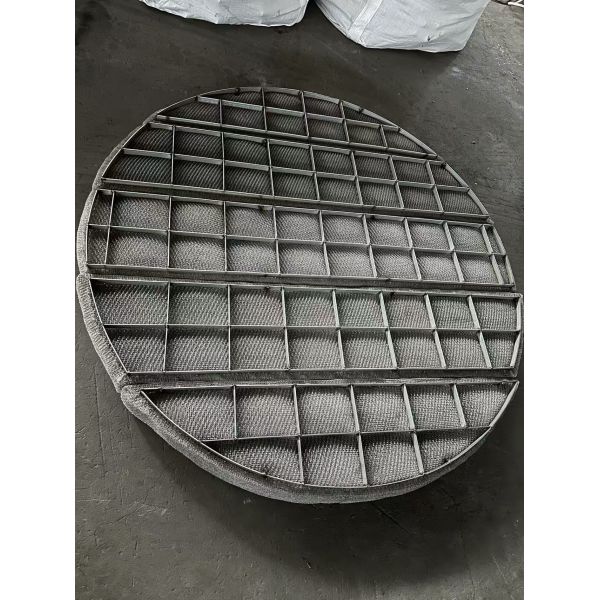

Stainless Steel Wire Metal Embedded Demister Pad for Vapor Liquid Separator 600mm
Description of Wire Mesh Demister
Wire mesh demister is a kind of vapor-liquid separating device, It is used to remove the steam, entrained droplets in the processing equipment when the gas go through demister wire pad, with big surface, high demisting efficiency, and long working life, good resistance.
* Wire Mesh Demister Material : Stainless Steel 304L, 316L, Monel, Nickle, ect.
* Wire Diameter: 0.08--0.50mm, But 0.2mm-0.25mm are the most common wire diameter specifications.
* Width: 40mm, 80mm, 150mm, 200mm, 300mm, 400, 500mm, 600mm, 800mm, 1000mm, 1200mm, 1400mm, etc. Less than 1000mm width are the most common width and are easy to make. Also available upon customers' request.
Specification of Wire Mesh Demister
| Attribute |
Typical Value |
| Material |
Stainless Steel / Galvanized Wire |
| Mesh Size |
Customizable to 5–15 mm |
| Temperature Resistance |
Up to 400°C |
| Density |
Light, Medium, Heavy-duty |
| Dimensions |
Customizable up to 1500×1500 mm |
| Airflow Resistance |
Low resistance for high efficiency |
| Maintenance |
Easy to clean and maintain |
| Packing |
Palletized with moisture-proof wrap |
Features of Wire Mesh Demister
1. simple structure, small in size, light weight,
2. large contact surface area, and high separation efficiency
3. small resistance, light weight, easy to install, operate and maintain
4. corrosion resistance, high temperature resistance, long service time
Applications of Wire Mesh Demister
The Demister Pad is widely used in a variety of industries, including chemical, petrochemical, and oil refineries. It is typically placed in gas treatment towers, distillation columns, and scrubbers. The pad's ability to handle high temperatures, along with its excellent vapor separation capabilities, makes it ideal for use in systems that require high-efficiency mist removal and oil recovery.
Temperature Resistance & Durability
Withstanding temperatures of up to 400°C, the Demister Pad is ideal for high-temperature separation processes. Its construction ensures that it can endure extreme conditions without degrading or losing its efficiency. The material's resistance to corrosion makes it suitable for use in environments with high concentrations of chemicals or other aggressive substances, ensuring a long operational life and low maintenance requirements.
Maintenance & Longevity
This product is designed to minimize downtime, thanks to its ease of maintenance. Regular cleaning ensures that the pad operates at its full potential, preventing the buildup of particles that could reduce efficiency. The durable materials used in the Demister Pad guarantee that it can function efficiently for an extended period with minimal maintenance intervention.
